- Place of Origin:CN;GUA
- Technics:Forged
- Connection:Female
- Shape:Equal
- Head Code:Hexagon
- Brand Name:TONY
- Model Number:TRT
Specification
Instrumentation 1/4"Female Pipe x 1/4"Female Pipe x 1/4"Male Pipe Run Street Tee NPT Pipe Fittings
Type | Female Run Tee | ||||||
Size Range | 1/16"to 2"(2mm to 38mm) | ||||||
Material | 316 Stainless Steel | ||||||
Working Temperature | -325℉~800℉ (-198℃~426℃) | ||||||
Thread Type | NPT | ||||||
Pressure Rating | 268~757bar | ||||||
OEM service | Available | ||||||
Application Scope | Water, Oil, Gas and Alkaline or Acidic Liquid | ||||||
Usage | Petroleum, Chemical, Power, Electronics, Machinery, Shipbuilding, etc | ||||||

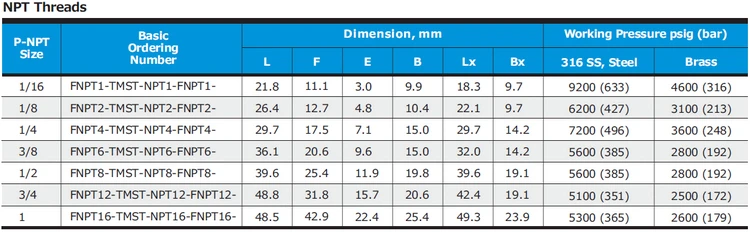

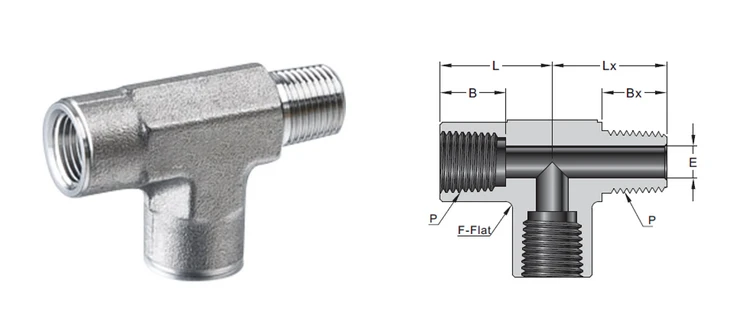

Dimension
Contact us for more info about the quote and the catalog
About Us
Guangdong TONY Fluid Control Ltd. is a branch company of COVNA GROUP in Guangdong, China. TONY Fluid supports a broad inventory of standard and non-standard valves and fittings, including stainless steel compression tube fittings, pipe fittings, ultra high pressure fittings, instrumentation fittings, needle valves, check valves, instrument ball valve, 37 degree JIC fittings, flanges and custom/customized /OEM accurate CNC Machining service.
