- Material:316 Stainless Steel
- Size Range:1/16"~2",2mm-38mm
- Standard:IC/BSP/NPT/BSPT/SAE/Metric/ORFS
- Thread Type:Male NPT to JIC Flare
- OEM Service:Available
- Certificate:ISO 9001, CE
- Application:CNG, CO2 Generation, Marine, Mining, Chemical
- Condition:New
- Warranty:1 YEAR
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Type:Fittings
- After-sales Service Provided:Online support
- After-sales Service Provided:Video technical support
- Place of Origin:CN;GUA
- Brand Name:TONY
China Suppliers High Pressure Steam Hydraulic Hose Fittings Elbow Male JIC Pipe Fitting
Specification
Type | 90 Degree JIC Male Elbow | ||||||
Size Range | 1/16"to 1" | ||||||
Material | 316 Stainless Steel | ||||||
Working Temperature | -325℉~800℉ (-198℃~426℃) | ||||||
Thread Type | NPT | ||||||
Pressure Rating | 268~757bar | ||||||
OEM service | Available | ||||||
Application Scope | Water, Oil, Gas and Alkaline or Acidic Liquid | ||||||
Usage | Petroleum, Chemical, Power, Electronics, Machinery, Shipbuilding, etc | ||||||

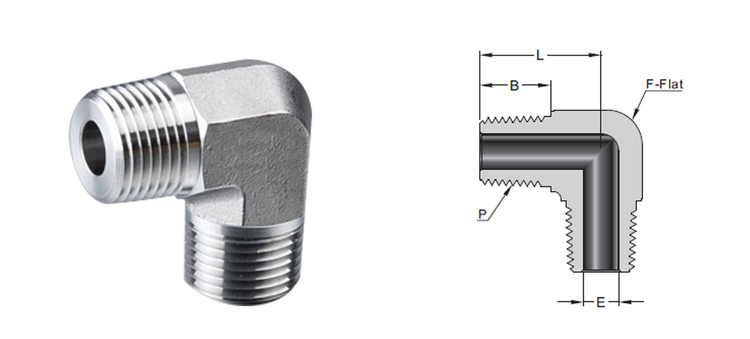

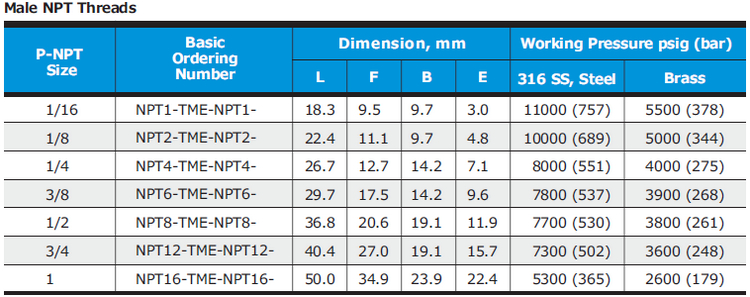

Dimension

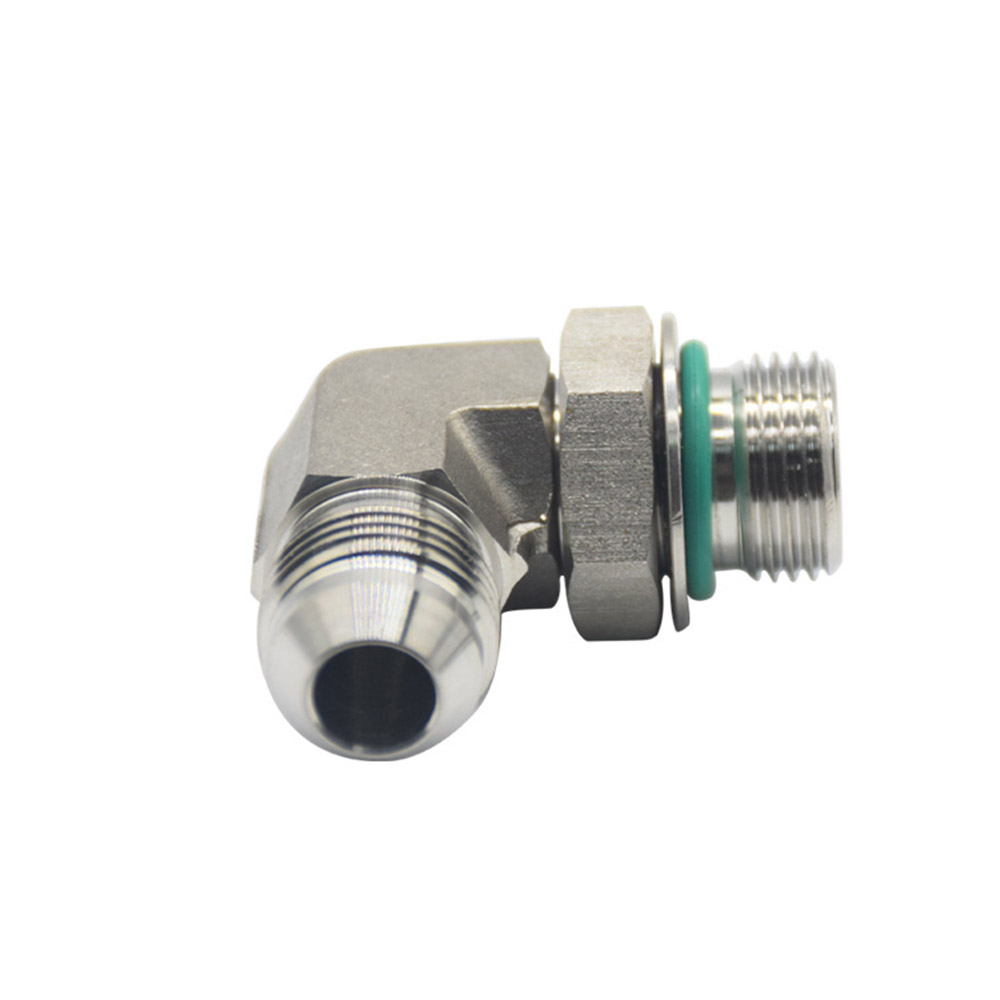

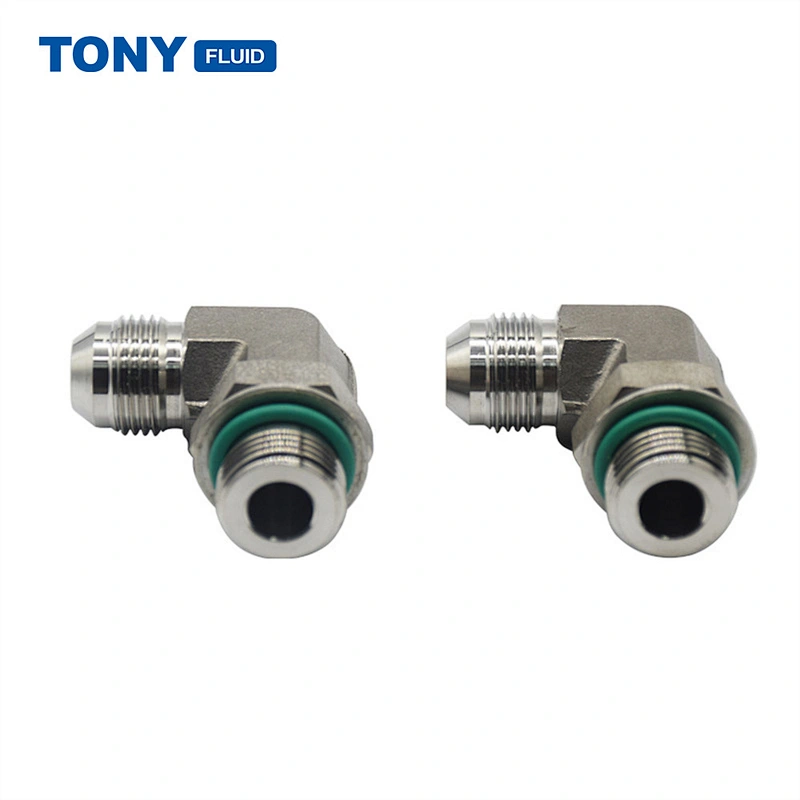

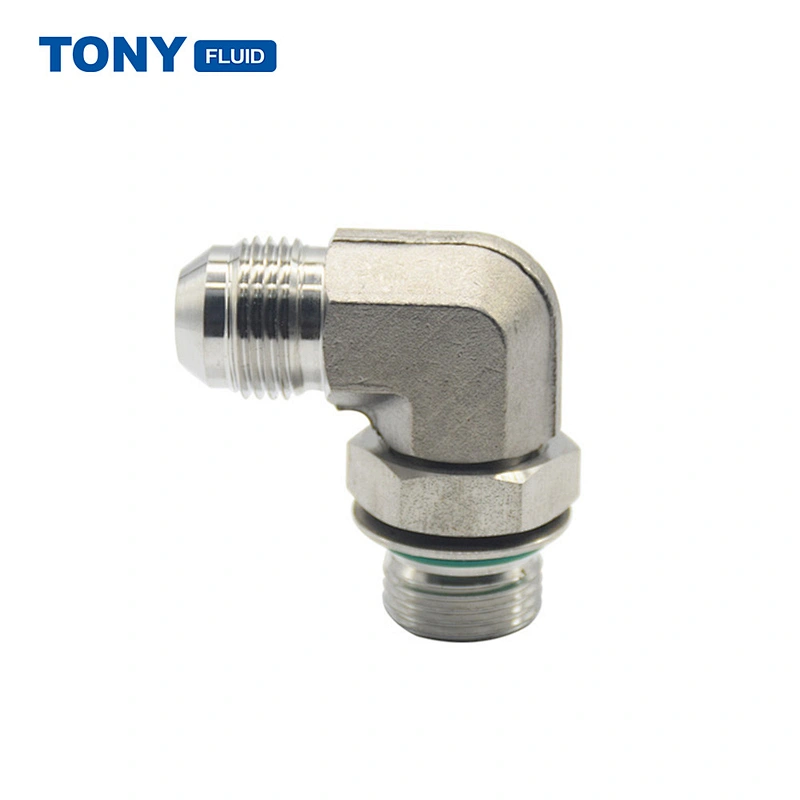

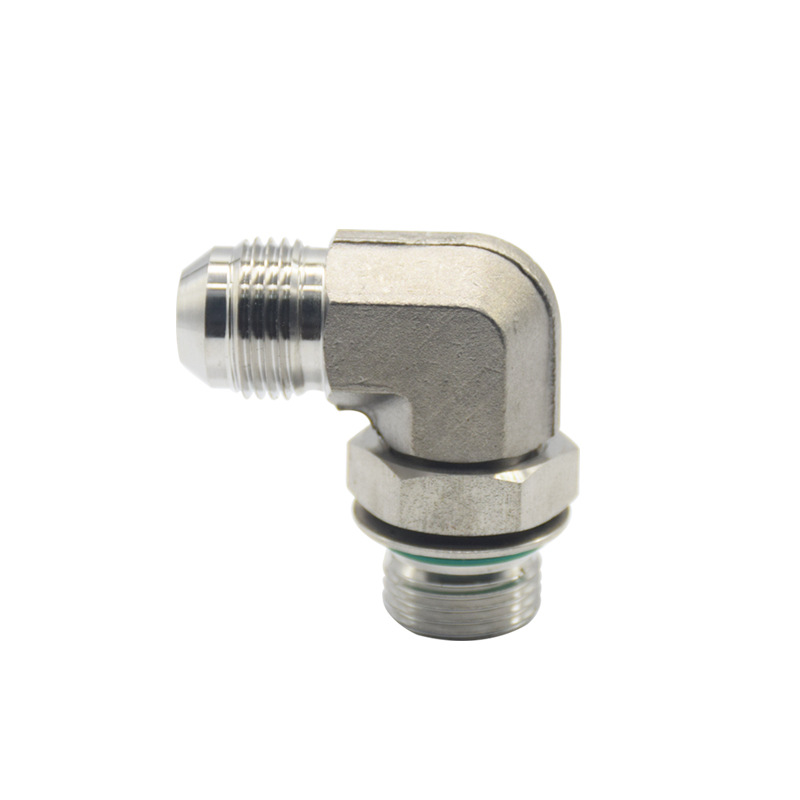

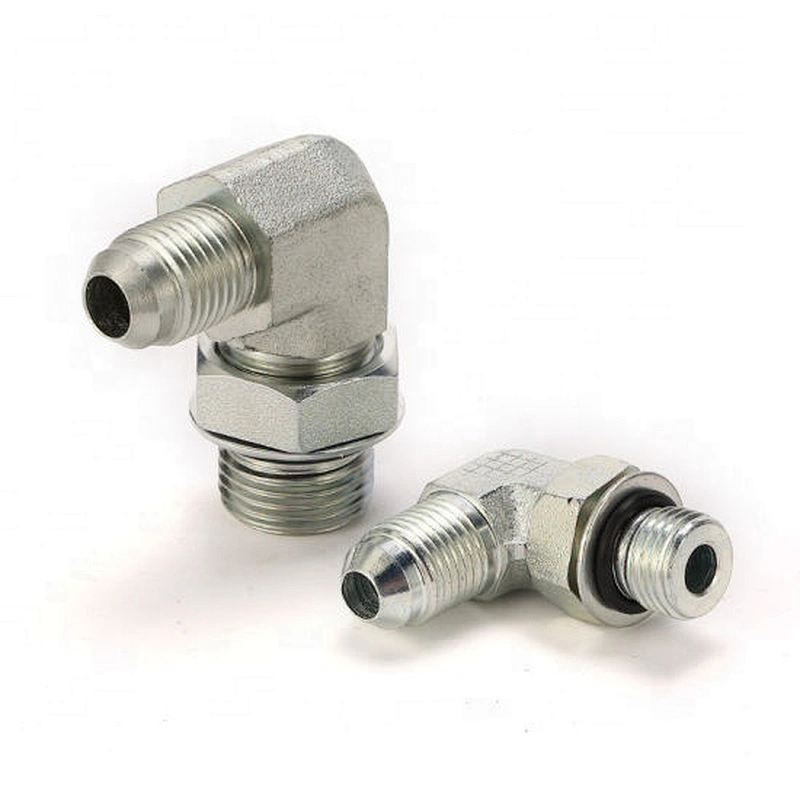

Details Images
About Us
FAQ
Q1: Can I have a sample order?
A: Definitely Yes. We welcome sample order to test and check quality.Mixed samples are acceptable.
Q2: Do you have any MOQ limit for valve order?
A: One pcs for sample checking is available. For stocks, low MOQ is available.
Q3: Can you do the design for us?
A: Yes. We have a professional and experienced team. Please send us high resolution images,your logo and other materials needed.We will send you finished files for confirmation.
Q4: How to proceed an order?
A: Stepl Let us know your requirements or application.
Step2 We quote according to your requirements or our suggestions.
Step3 Customer confirms the samples and places deposit for formal order.
Step4 We arrange the production.
Q5: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient for you.
A: Definitely Yes. We welcome sample order to test and check quality.Mixed samples are acceptable.
Q2: Do you have any MOQ limit for valve order?
A: One pcs for sample checking is available. For stocks, low MOQ is available.
Q3: Can you do the design for us?
A: Yes. We have a professional and experienced team. Please send us high resolution images,your logo and other materials needed.We will send you finished files for confirmation.
Q4: How to proceed an order?
A: Stepl Let us know your requirements or application.
Step2 We quote according to your requirements or our suggestions.
Step3 Customer confirms the samples and places deposit for formal order.
Step4 We arrange the production.
Q5: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient for you.
Q6: What's the package and how do you ship the goods?
A: Usually is wood pallet or as your requeste usually ship by sea. Airline shipping is also optional.
A: Usually is wood pallet or as your requeste usually ship by sea. Airline shipping is also optional.
