- Type:Needle Valves
- Application:General
- Temperature of Media:High Temperature
- Power:Manual
- Media:Water
- Structure:Needle
- Place of Origin:CN;GUA
- Brand Name:TONY
- Model Number:NV1
- Port Size:1/8"~3/4"
- Type:Mini Needle Valve
- Material:316 Stainless Steel
- Size Range:6mm-28mm
- Media:Oil, Gas
- Connection:Butt Weld
- Working pressure:6000PSI (413 bar)
- Working Temperature:65℉~1200℉ (-53℃~648℃)
- OEM:OEM Services Provided
- Number of Ways:2 Way
- Certificate:ISO 9001, CE

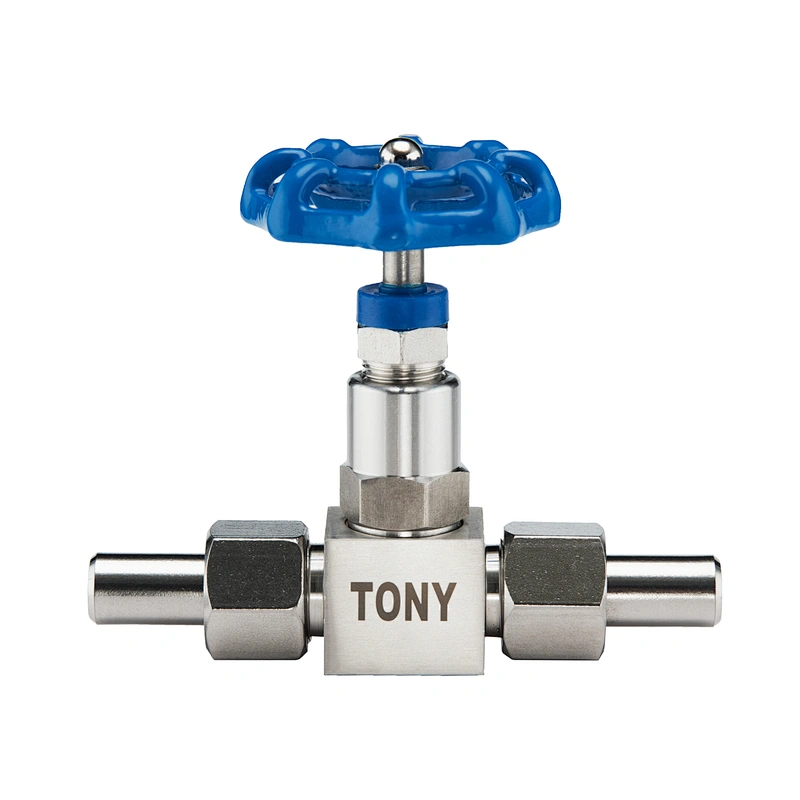

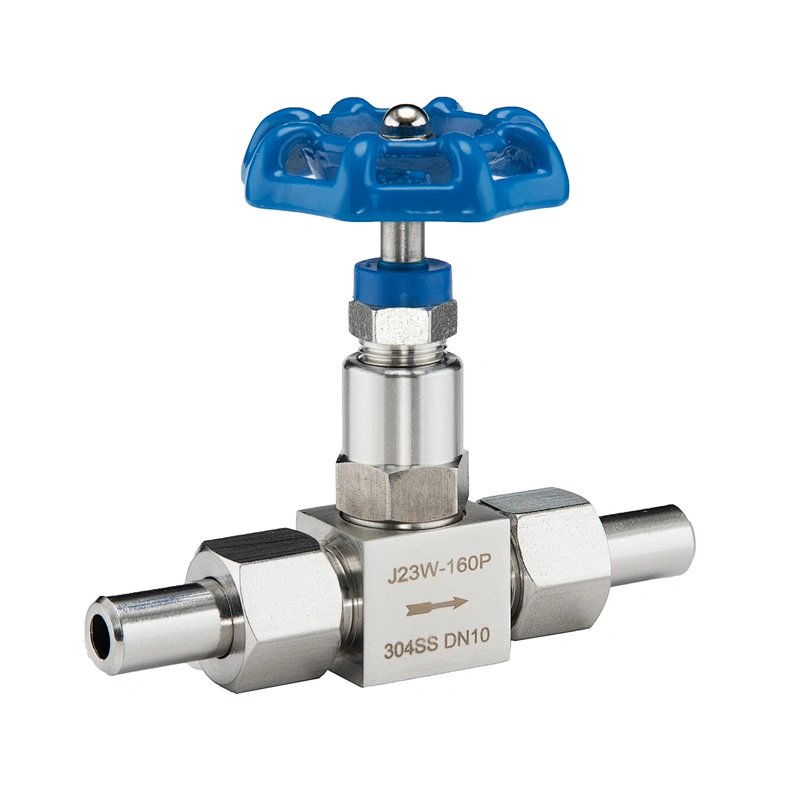

High Pressure 6000 PSI 2 Way Stainless Steel 316/316L Adjustable Ferrule Weld BW Needle Valve with Wheel Handle
Specification
Type | Needle Valve | ||||||
Size Range | 1/8"to 3/4" | ||||||
Material | 316 Stainless Steel | ||||||
Number of Ways | 2 Way | ||||||
Working Temperature | -65℉~6000℉ (-53℃~648℃) | ||||||
Connection | Butt Weld | ||||||
Woking Pressure | 6000PSI (413bar) | ||||||
OEM service | Available | ||||||
Media | Water, Oil, Gas and Alkaline or Acidic Liquid | ||||||
Usage | Petroleum, Chemical, Power, Electronics, Machinery, Shipbuilding, etc | ||||||

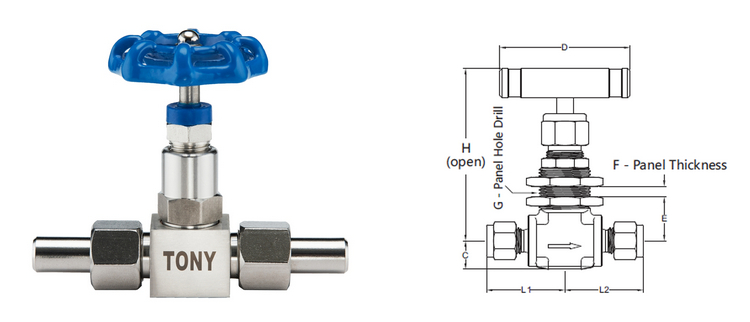

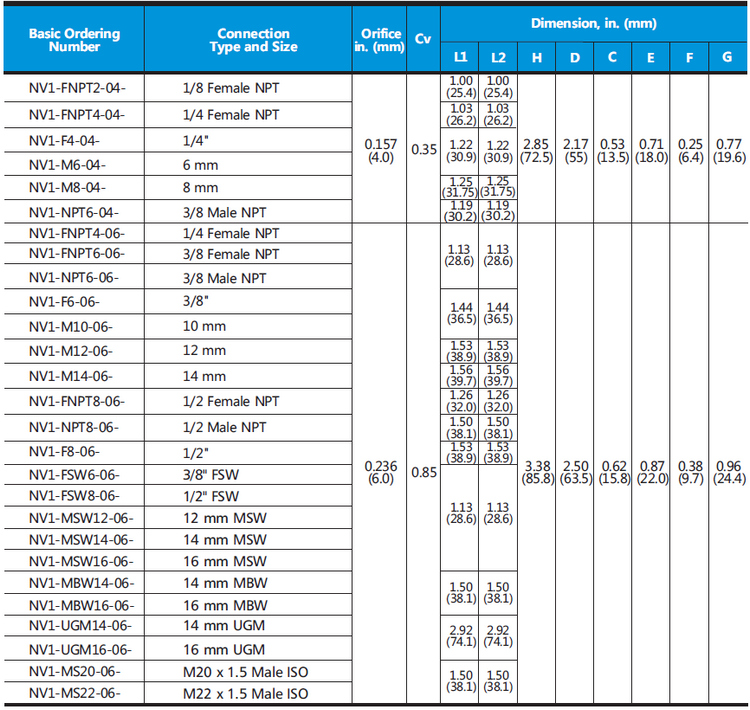

Dimension
About Us
FAQ
Q1: Can I have a sample order?
A: Definitely Yes. We welcome sample order to test and check quality.Mixed samples are acceptable.
Q2: Do you have any MOQ limit for valve order?
A: One pcs for sample checking is available. For stocks, ow MOQ is available.
Q3: Can you do the design for us?
A: Yes. We have a professional and experienced team. Please send us high resolution images,your logo and other materials needed.We
will send you finished files for confirmation.
Q4: How to proceed an order?
A: Stepl Let us know your requirements or application.
Step2 We quote according to your requirements or our suggestions.
Step3 Customer confirms the samples and places deposit for formal order.
Step4 We arrange the production.
Q5: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient for you.
Q6: What's the package and how do you ship the goods?
A: Products are usually packed in cartons and transported by logistics.
A: Definitely Yes. We welcome sample order to test and check quality.Mixed samples are acceptable.
Q2: Do you have any MOQ limit for valve order?
A: One pcs for sample checking is available. For stocks, ow MOQ is available.
Q3: Can you do the design for us?
A: Yes. We have a professional and experienced team. Please send us high resolution images,your logo and other materials needed.We
will send you finished files for confirmation.
Q4: How to proceed an order?
A: Stepl Let us know your requirements or application.
Step2 We quote according to your requirements or our suggestions.
Step3 Customer confirms the samples and places deposit for formal order.
Step4 We arrange the production.
Q5: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient for you.
Q6: What's the package and how do you ship the goods?
A: Products are usually packed in cartons and transported by logistics.
